PanBox

Throw-down 3x or 6x channel 3G/HD-SDI fibre link

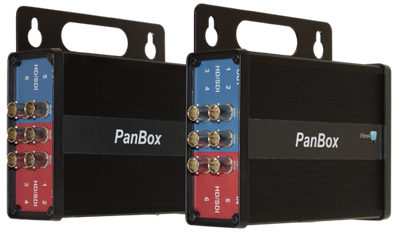

PanBox is a field deployable throw-down fibre optic transceiver that converts SD, HD or 3G video signals to one core (2+1 version) or 2 cores (4+2 version) of singlemode fibre cable.

PanBox PanBox provides a robust housing with optional handle and colour codes the video inputs and outputs allowing ease of use. It also gives the units a more rugged field connector, in the Neutrik DUO or QUAD, and a 4 pin XLR power connector for a DC supply (included).


Per channel LEDs indicate the presence of signal, both at the send and receive ends. Low power consumption and a 5-24VDC operating range also make PanBox suitable for battery operation. Optical connectors can be Neutrik DUO or QUAD or a standard ST or LC.

PanBox PanBox Measuring just W11x H4.5x L16cm and with a high optical budget, PanBox is the perfect throw-down video transport problem solver.

Ask about our fibre assemblies and cleaning kits to compliment the PanBox.
