Bridge M_OTR Digital Forecast

Micro Optical Transceiver



Bridge M_OTR

Bridge M_OTR is a low cost 3G/HD-SDI fibre link. It transports 2 send and 1 return video over a single core of fibre terminated to LC connector.
Bridge M_OTR can be fitted into PanBox, an Mi Broadcast throw-down housing that can hold one or two systems.

Features
  • Bidirectional Optical to HD/SDI
  • 1310nm ,1490nm,1550nm FP-LD Source
  • 1 HD/SDI Select input ( Send SD/HD/3G )
  • 2 HD/SDI Receive out ( Receive part )
  • SMPTE Mode(Support Pathological Signal)
  • Up to 10 Km using Single mode fiber
  • DC 5V ~ 24V wide operating range

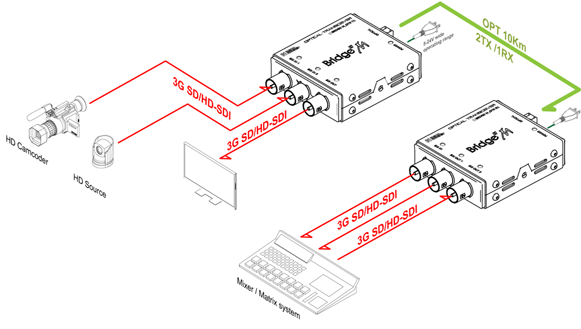

Application Bridge M_OTR
