StudioLink

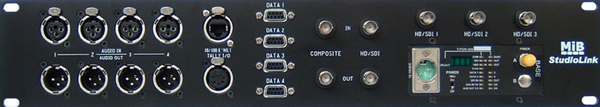

StudioLink, a 2U 19” rack mount enclosure for studio use, houses the Telecast
T-POV 324 and up to 3 Telecast Rattlers breaking out all the signals of the T-POV to
BNCs, XLRs and 9-pin D to the front Panel.
The system transports up to 5 SD-HD-SDI videos, bi-directional composite video, bi-directional
4 analogue audios, 4x serial data, 10/100MB Ethernet and 2x GPI over
singlemode fibre cable.
StudioLink can be supplied with industry standard optical fibre connectors including
Neutrik DUO or QUAD, LEMO 3K.93C, ST and Delphi 4CH hermaphroditic. Each
unit has diagnostic LEDs and optical power metering for first line maintenance.
Studiolink can be deployed in pairs or can connect to the Telecast T-POV 324 1U
rack or Mi Broadcast TruckLink portable mussel shell.
TruckLink
StudioLink, a portable mussel shell enclosure for field use, houses the Telecast T-POV 324 and up to 3 Telecast Rattlers
breaking out all the signals of the T-POV to BNCs, XLRs and 9-pin D to the front Panel.
The system transports up to 5 SD/HD-SDI videos, bi-directional composite video, bi-directional 4
analogue audios, 4x serial data, 10/100MB Ethernet and 2x GPI over singlemode fibre cable.
TruckLink can be supplied with industry standard optical fibre connectors including Neutrik DUO or QUAD, LEMO 3K.93C,
ST and Delphi 4CH hermaphroditic. Each unit has diagnostic LEDs and optical power metering for first line maintenance.
Studiolink can be deployed in pairs or can connect to the Telecast T-POV 324 1U rack or Mi Broadcast StudioLink
rack mount transceiver.
