Stage Racer Ereca

Flexible general purpose link for television broadcast applications.

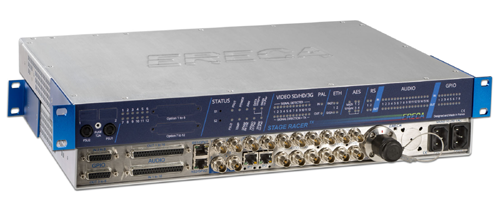

Stage Racer

Each 1U 19” carries a range of signals to support most events where a full broadcast connection is required between two locations.

It has the following comprehensive set of signals:
  • 4, 8 or 12 video 3G / HD / SDI signals (direction configurable through built in web server)
  • 1 bidirectional Composite Video (PAL Video / Black burst / Tri-level)
  • 16 bi-directional analogue audio for intercom or broadcasting
  • 2 Ethernet 10/100/1000Mbs (1 Gigabit trunk with 2 VLANS)
  • 4 Data RS 232/422/485
  • 8 Contact closures
  • 4 AES 3 bidirectional (Riedel panel compatible)
  • 1 bidirectional MADI (AES10) Signal (Shared with 2 of the 4 AES connectors)
Optionally the unit can be fitted with 8 Ch mic/line inputs at the remote end, an additional 12 RS422 channels and redundant fibre I/O. Requiring just 2 singlemode fibres the units can be fitted with standard SCs or Lemo or Neutrik connectors with the option of remote powering.
An internal Web Browser allows the user to quickly change the direction of 3G/HD-SDI videos, control the level and phantom power on the optional Mic/line card and access all the status of the unit. The front panel LEDs give signal presence and alarm display.

Stage Racer supports intercom panels from the leading matrix based intercom suppliers including Telex, Clearcom and Riedel.
